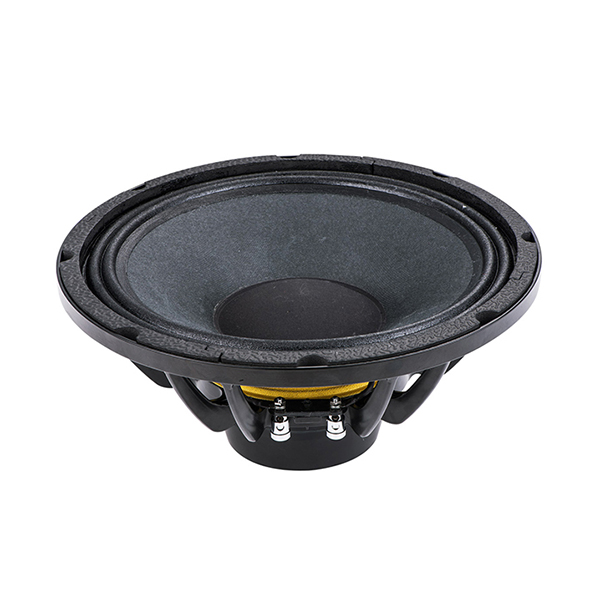

| Frame Material: | Aluminium Casting |
| Nominal Diameter: | 320mm(12in) |
| Nominal Impedance: | 8 ohm |
| Power RMS: | 400W |
| Sensitivity(2.83V/1m): | 100dB |
| Frequency Range: | 50-2000Hz |
| Voice Coll Diameter: | 76mm |
| Frame Material: | Aluminium Casting |
| Nominal Diameter: | 320mm(12in) |
| Nominal Impedance: | 8 ohm |
| Power RMS: | 400W |
| Sensitivity(2.83V/1m): | 100dB |
| Frequency Range: | 50-2000Hz |
| Voice Coll Diameter: | 76mm |
| Coil Material: | Copper |
| V.C Former Material: | Glass Fiber |
| Gsp Depth: | 10.5mm |
| Voice Coil Winding Width: | 17.5mm |
| Magnet Type: | Neodymium |
| Fs: | 50Hz |
| Re: | 5.1 ohm |
| Qts: | 0.2 |
| Vas: | 73 Ltr |
| Xmax: | ±7mm |
Standard Package: Product inner box(see the below three styles)+Shipping box(carton box)
Inner box:
Stype 1 : color box
Stype 2: white box
Stype 3:carton box
Customized Package: offered the designe by the customer
