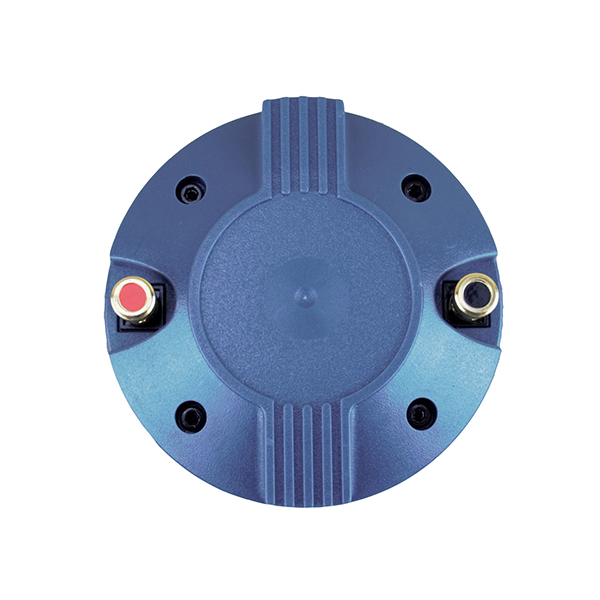

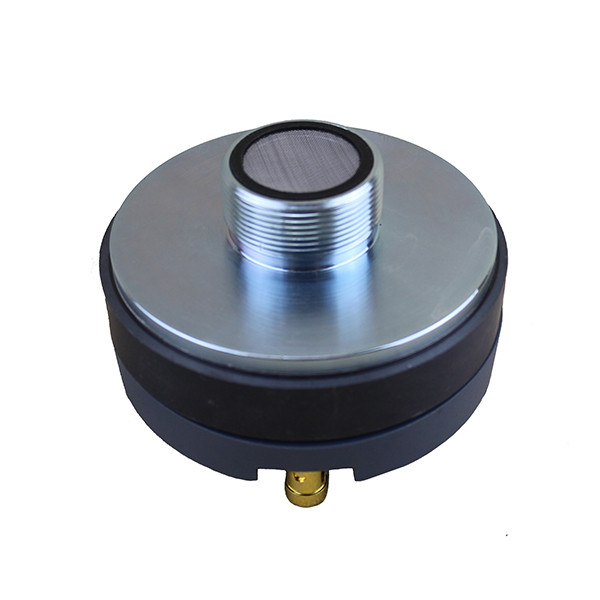

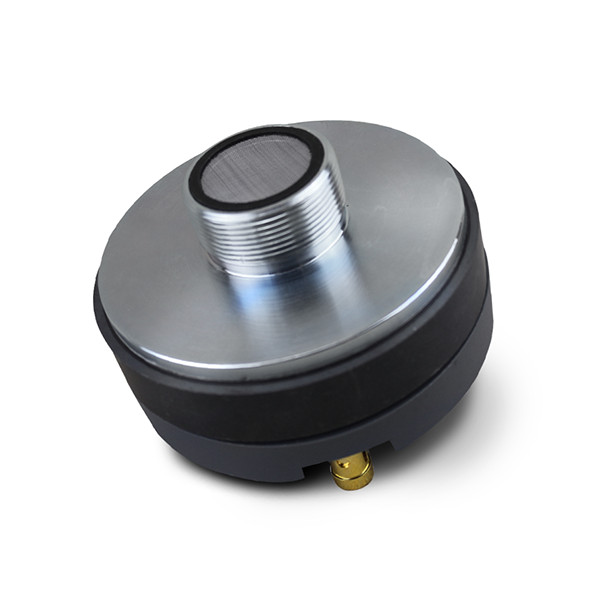

TD340
TD340
TD340
TD340
TD340

TD340

Throat Diameter: 1" (25mm)
Mounting Screw: Screw on 1 3/8"
Nominal Impedance: 8 ohm
Rated Power: 25W
Sensitivity: 106dB/W/M
Frequency Range: 1.2KHz-20KHz
Diaphragm Material: Titanium
Voice Coll Diameter: 1.35" (34.4mm)
Magnet Weight: 12.3 oz Ferrite
Product Description
Application
Packaging & Shipping
  • Throat Diameter: 1" (25mm)
    Mounting Screw: Screw on 1 3/8"
    Nominal Impedance: 8 ohm
    Rated Power: 25W
    Sensitivity: 106dB/W/M
    Frequency Range: 1.2KHz-20KHz
    Diaphragm Material: Titanium
    Voice Coll Diameter: 1.35" (34.4mm)
    Magnet Weight: 12.3 oz Ferrite
    Flux Density: 1.5T
    Net Weight: 0.97kg
    Measurement: 90mm x 63mm
  • Standard Package: Product inner box(see the below three styles)+Shipping box(carton box)



    Inner box:

    Stype 1 : color box



    Stype 2: white box



    Stype 3:carton box



    Customized Package: offered the designe by the customer
